Thrustmaster · Pedals · 3-Pedal Load Cell Set
Thrustmaster Raceline Pedals III LC
"A strong mid-range 3-pedal load cell set with solid adjustability, metal construction, and broad appeal for PC and Thrustmaster console users."
// Support the site
ThrustmasterSIM2TRACKLABUse this code at checkout to support Sim2TrackLab — it costs you nothing and helps us keep the site independent.
Affiliate disclosure — Sim2TrackLab may earn a commission when you buy through these links, at no extra cost to you. Our editorial picks are independent.
Platforms
Ecosystem
// 30-day price history
Price tracking starts once data collection is active for this product.
// Editorial verdict
The Thrustmaster Raceline Pedals III LC is a smart mid-range upgrade for sim racers who want to move beyond basic potentiometer pedals without jumping straight into high-end enthusiast pricing. Its 100 kg Load Cell brake, Hall Effect sensors, modular metal design, and adjustable pressure settings make it a serious step up in braking feel and long-term precision. It makes the most sense for users who want a versatile 3-pedal set for PC or who are already inside the Thrustmaster ecosystem.
Strengths

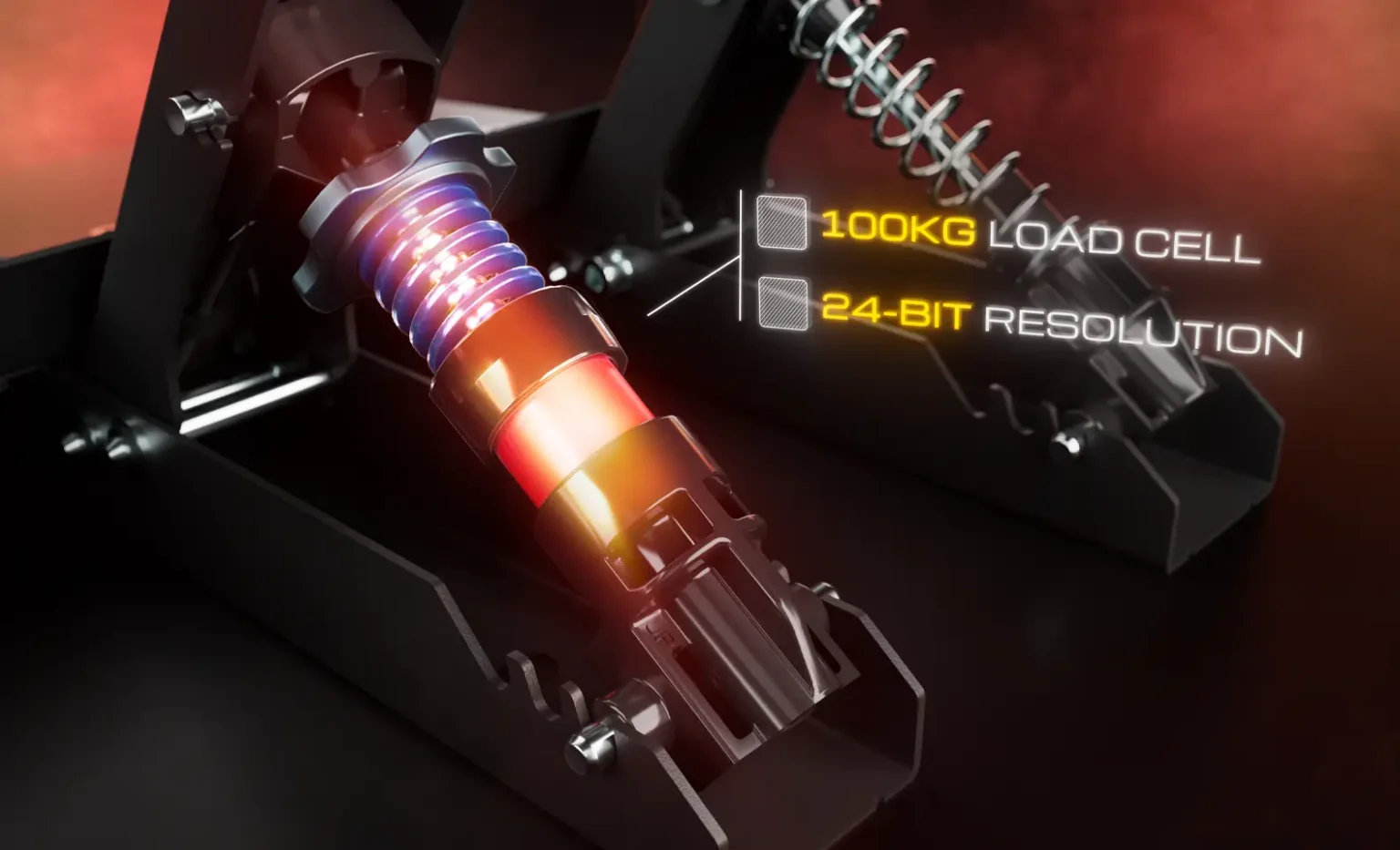

- ·100 kg Load Cell brake with 24-bit resolution
- ·Throttle and clutch use H.E.A.R.T Hall Effect sensors

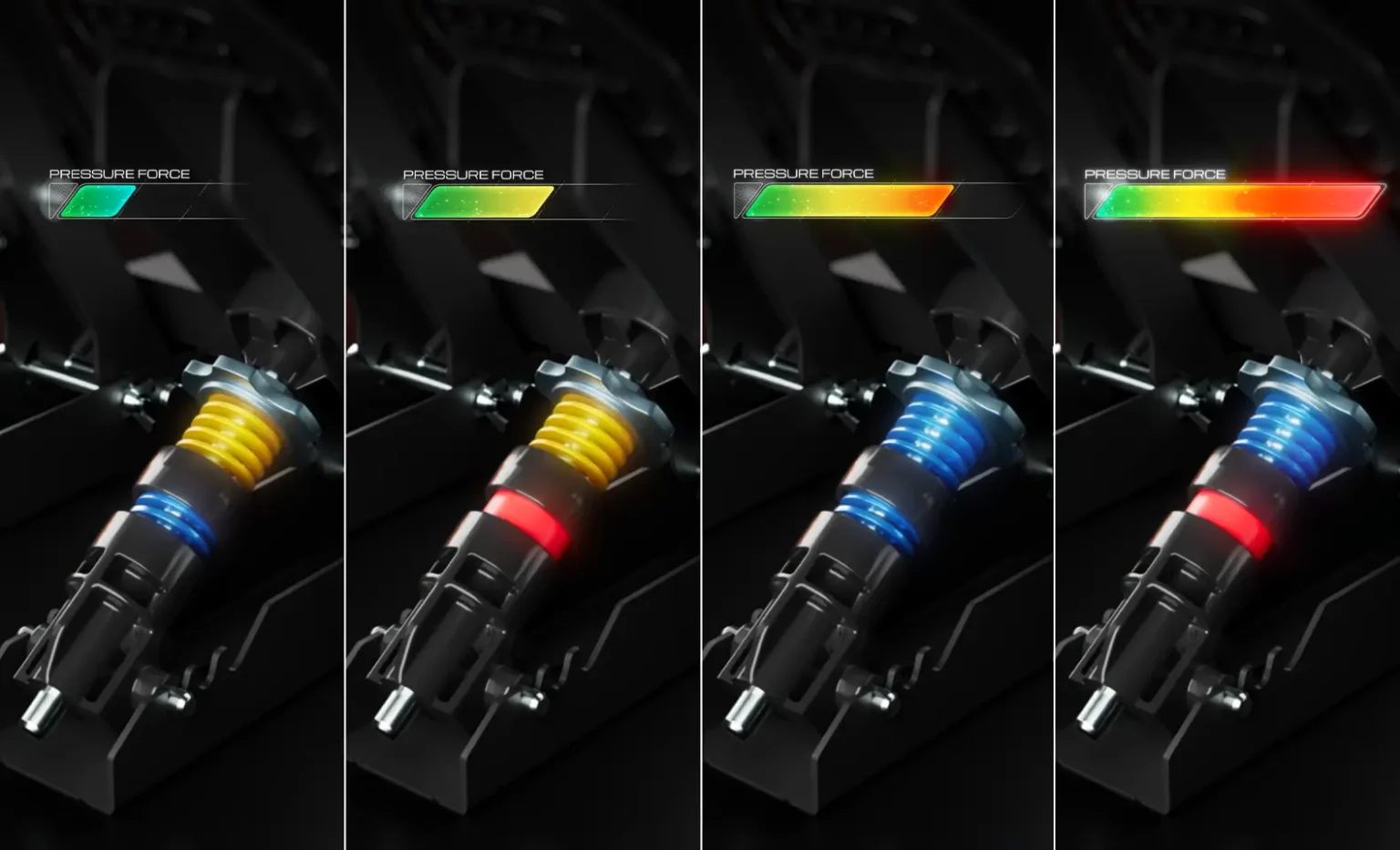

- ·Brake force adjustable from 25 to 100 kg

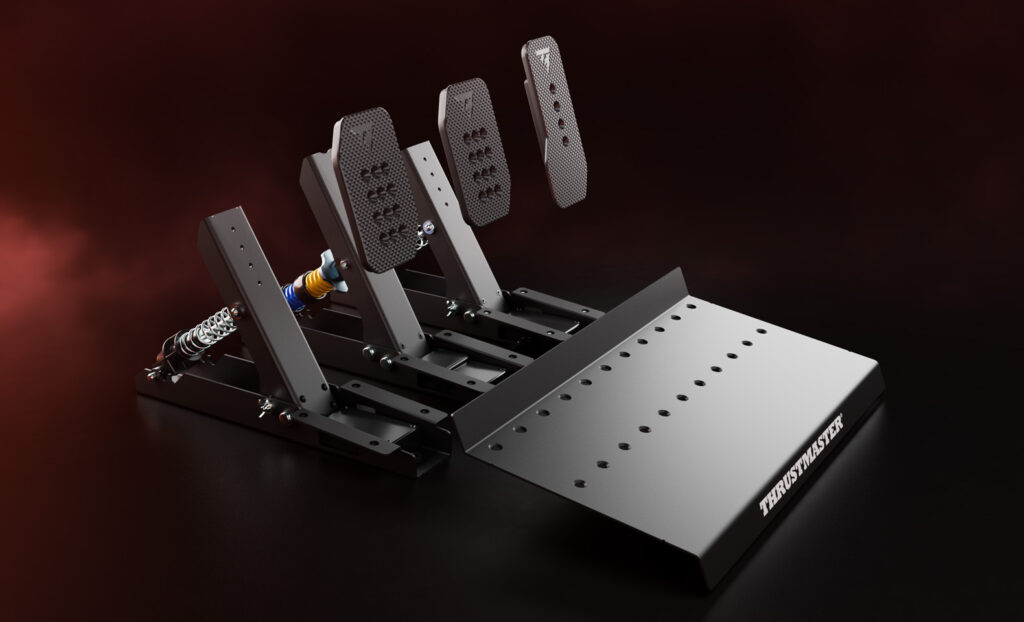

- ·100% metal modular pedal construction
- ·Works with all wheel bases on PC via USB
Weaknesses
- ·Console compatibility depends on a compatible Thrustmaster wheel base
- ·Not as premium as higher-end enthusiast pedal sets
- ·Best performance will usually require a cockpit or solid pedal mounting
- ·Software and ecosystem value are stronger if you already use Thrustmaster hardware
Specifications
- weight kg
- 4.6
- box contents
- 1 x Raceline Pedals III LC,3 x carpet grips,3 x additional brake springs,1 x elastomer buffer,2 x 2.5 mm jack to 3.5 mm jack pedal-to-pedal cables,1 x Torx adjustment wrench
- construction
- [object Object]
- intended use
- Sim racing,GT,Road car,General multi-discipline racing
- product type
- Sim racing pedals
- dimensions mm
- [object Object]
- resolution bits
- 24
- pedal set layout
- 3-pedal set
- brake capacity kg
- 100
- brake capacity lb
- 220
- brake sensor type
- Load Cell
- software features
- My Thrustmaster Panel on PC,Race Dash screen support with T598
- clutch sensor type
- H.E.A.R.T Hall Effect
- adjustment features
- 4 brake force configurations,Preload dial adjustment,Pressure and travel tuning,Response curve adjustment through software,Pedal configuration customization
- brake configurations
- 4
- throttle sensor type
- H.E.A.R.T Hall Effect
- adjustable brake force kg
- [object Object]
- adjustable brake force lb
- [object Object]
- brake travel angle degrees
- 11
- preload adjustment kg step
- 5
- preload adjustment lb step
- 11
Compatibility
- limitations
- Console use requires a compatible Thrustmaster wheel base,T500 is excluded from console ecosystem compatibility
- upgrade path
- Part of the modular Raceline pedal ecosystem
- mounting notes
- Can be used on desk or floor setups,A cockpit or rigid pedal plate is recommended for heavy load cell braking,Carpet grips are included for improved floor stability
- software notes

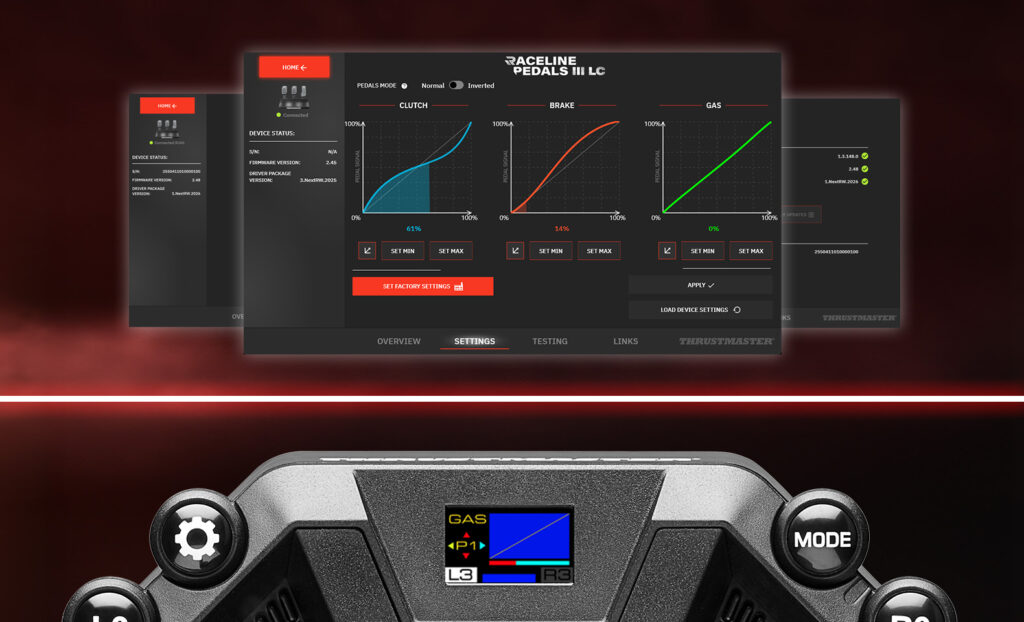

- Advanced settings available in My Thrustmaster Panel on PC,Advanced settings can also be accessed via the T598 Race Dash screen
- platform compatibility
- [object Object]
- ecosystem compatibility
- [object Object]
